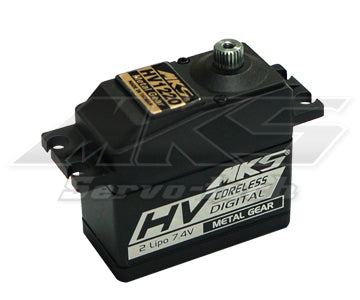

MKS - HV1220 Coreless Servo
SKU: MKS-HV1220-Servo
| Dead Band | 0.0008ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| (RX) Required Pulse | 3.0~8.4 Volt Peak to Peak Square Wave | |
| Operating Voltage | 4.8~8.4 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (7.4V) | 0.129 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.115 sec/60° dagrees at no load | |
| Stall Torque (7.4V) | 22.1 kg-cm (307 oz/in) | |
| Stall Torque (8.4V) | 23 kg-cm (319 oz/in) | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Titanium Gears | |
| Programmable | NO | |
| Connector Wire Length | 15.0 cm (5.9 in) | |
| Dimensions | 40X20X37 mm | |
| Weight | 57.70 g ( 2.03oz) | |
