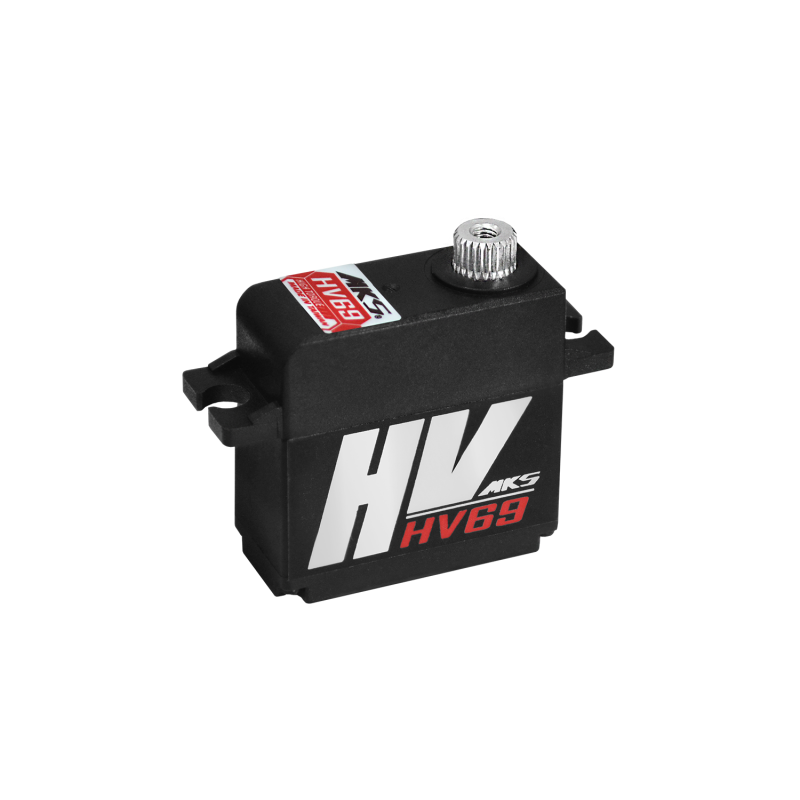

MKS - HV69 High Torque Micro Servo
SKU: MKS-HV69
| Dead Band | 0.001ms (Default) | |
| Spline Size | 6mm 25 Tooth | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333Hz | |
| Operating Voltage | 3.7 ~ 8.2 V DC Volts (for 2S ~ 1S LiPo) | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.17 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.13 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 6.0 kg-cm / 83.3 oz-in | |
| Operating Speed (7.4V) | 0.11 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.10 sec/60° degrees at no load | |
| Stall Torque (6V) | 7.50 kg/cm (104.2 oz/in) | |
| Stall Torque (7.4V) | 9.2 Kg/cm (127.8 oz/in) | |
| Stall Torque (8.4V) | 10.2 Kg/cm (141.7 oz/in) | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Bearing Type | 2x Ball bearing | |
| Gear Type | Metal Alloy Gear | |

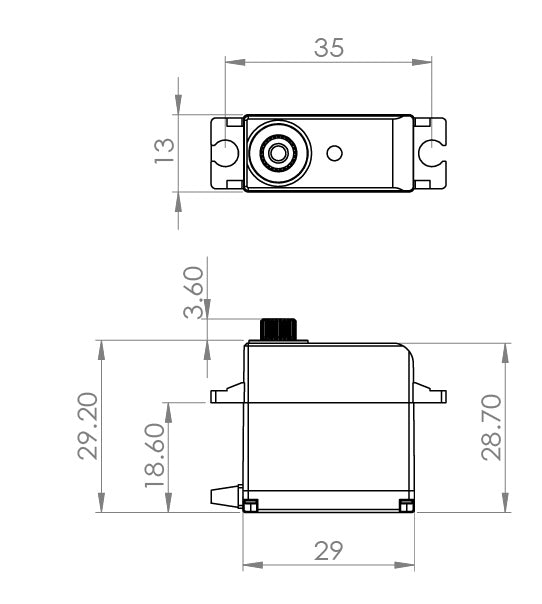

| Dimensions | 29 x 13 x 28.7 mm | |
| Weight | 21 g | |
