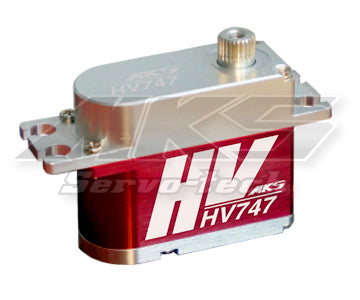

MKS - HV747 High Voltage Mini Servo
SKU: MKS-HV747-Servo
| Dead Band | 0.001ms | |
| Spline Size | 6mm 25 tooth | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated) | |
| Operating Speed (6V) | 0.17s | |
| Operating Speed (7.4V) | 0.14s | |
| Operating Speed (8.4V) | 0.13s | |
| Stall Torque (6V) | 11.8kg/cm | |
| Stall Torque (7.4V) | 13.8kg/cm | |
| Stall Torque (8.4V) | 15kg/cm | |
| Motor Type | Coreless Motor | |
| Gear Type | Chrome-Titanium alloy gear | |
| Connector Wire Length | 29.5 cm | |
| Dimensions | 35.5 x 15 x 28.5 mm | |
| Weight | 38.55g | |
