| Dead Band | 0.0008 ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| (RX) Required Pulse | 3.5 ~8.4 Volt Peak to Peak Square Wave | |
| Operating Voltage | 6.0 ~7.4 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.13 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.11 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.10 sec/60° degrees at no load | |
| Stall Torque (6V) | 29.50 kg/cm - 409.7 oz/in | |
| Stall Torque (7.4V) | 36.5 kg/cm - 506 oz/in | |
| Stall Torque (8.4V) | 40.40 kg/cm - 561.1 oz/in | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Titanium Gears | |
| Connector Wire Length | 15.0 cm (5.9 in) | |

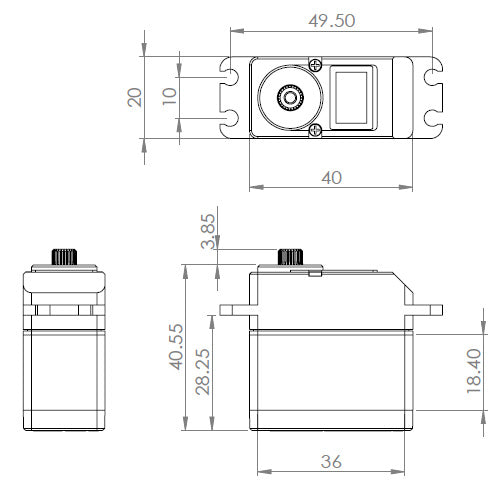

| Dimensions | 40X20X40 mm (1.57x0.97x1.57 in) | |
| Weight | 75.45g - (2.66 oz) | |
