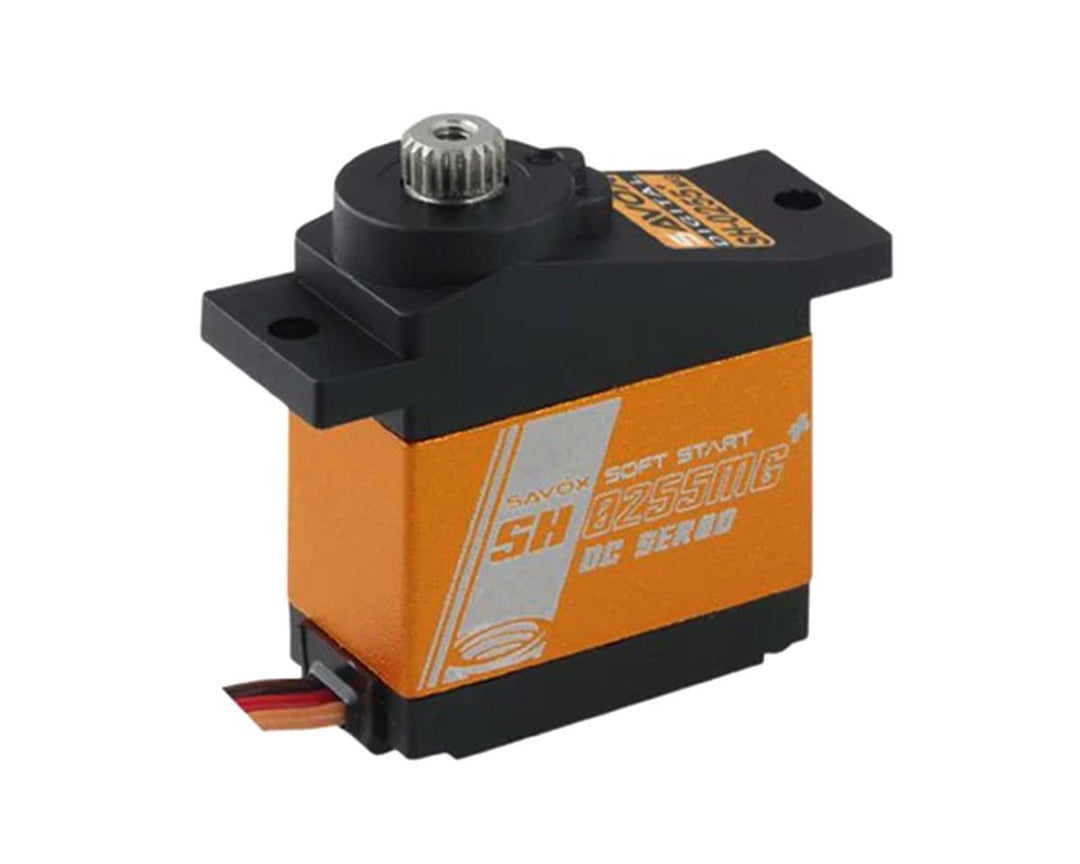

SAVOX SH-0255MGP (NOTE: The 0255MGP has a 21-Tooth spline)

The Savox SH-0255MGP micro, metal-gear, digital servo has plenty of torque to match a much larger standard size servo and outperform other competitive micro-size servos. NOTE: "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

Metal gear train ensures durability and longevity.

Aluminum middle case allows for cooler operating temperatures.

Ideal for small planes, and 450 size helicopters.

Specifications:

Torque:

@4.8v: 3.1kg-cm (43.1oz-in)

@6v: 3.9kg-cm (54.2oz-in)

Speed:

@4.8v: 0.16 sec/60deg

@6v: 0.13 sec/60deg

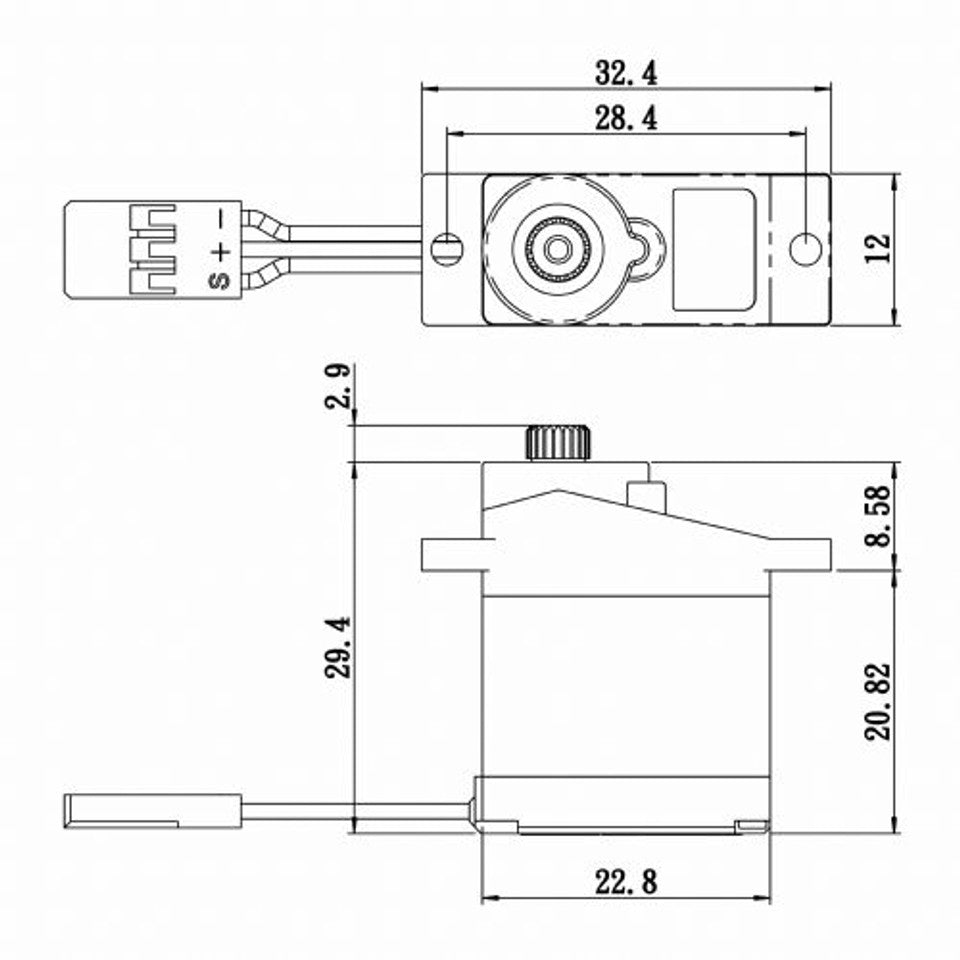

Dimensions (LxWxH): 22.8x12.0x29.4mm

Weight: 15.8g

Note: The 0255MGP servo has a 21-tooth spline. Our EF micro aluminum servo arms have a 25-tooth spline and are NOT compatible.
