WINGSPAN 80" / 2M
-
WEIGHT 10-11lbs
-
POWER AM670
Legacy - 80" Super Chipmunk - Yellow/Red - ARF
Extreme Flight is proud to offer the Super Chipmunk 2M from Legacy Aviation.
The Chipmunk is a famous and unique aircraft. Dating originally from 1946, it was designed as a primary trainer and more than 1200 were built. Starting in the 1960’s, aerobatic pilots such as Art Scholl and Skip Volk modified Chipmunks with larger engines and mods to surfaces, cowls and landing gear and came up with the Super Chipmunk. Our Chipmunk is modeled most closely on N540SC, an incredibly beautiful and clean IO540 powered Super Chipmunk belonging to Mike Morton.
The Legacy 2M Chipmunk has a scale side profile, but highly modified wing and tail surfaces for maximum aerobatic ability. It’s fully 3D capable, although it does the maneuvers a tick slower than our slicks and extras. It’s also very gentle, with large flaps for super-slow flight and extreme STOL performance.
The Chipmunk is a highly pre-fabricated aircraft, with pre-hinged and gap-sealed surfaces, quick build tail system, pre-vented cowl for great cooling, and loads of other time-saving features. It’s built of premium laser-cut balsa and ply integrated with carbon-fiber structural members. This structure allows it to be a huge 80” in span but fly on a single 6S lipo 750-850 grams (typically about 5000-60000mah) at only 9.5 lbs w/o Lipo (giving about 11-11.5 with Lipo). It feels like a feather in the air.
The Chippy uses 7 ultra-performance mini servos, either THETA989 or SAVOX1261 or equivalent. Each of these 7 servos needs a 1.25” lightweight EF servo arm. The Chipmunk is specifically designed for the mighty T-Hobby AM670 motor and matched AM116 ESC swinging an 18x8 T-Hobby Carbon prop. This system gives unlimited vertical, good punchout from hover, moderate speed, and long flight times.

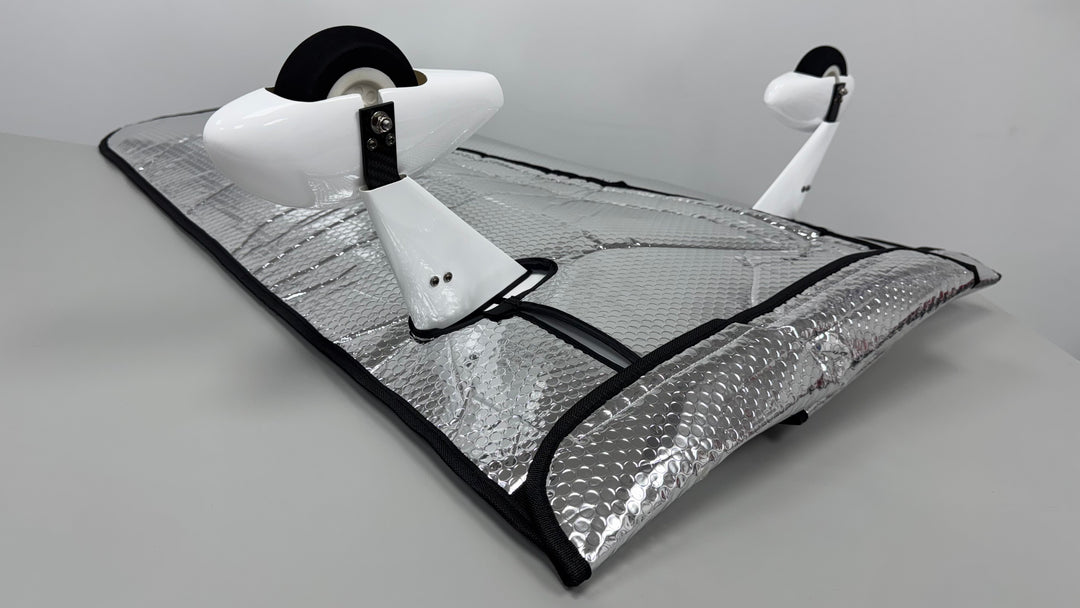

Equip the Chipmunk with the 145mm Pilot X2 figure for maximum realism. A full-color decal set is included, as is a robust flexible-foam transport cradle. Silver foil wing bags with special cut outs for the specific Chipmunk landing gear are also included, and a matched and vented Cyclone spinner. The red/white/blue scheme is based on N540SC’s full-scale paint job, while the yellow scheme is based on the full-scale CAF trainer livery and includes pre-applied and clear-coated shark’s mouth. Either way, the covering is genuine Ultracote.

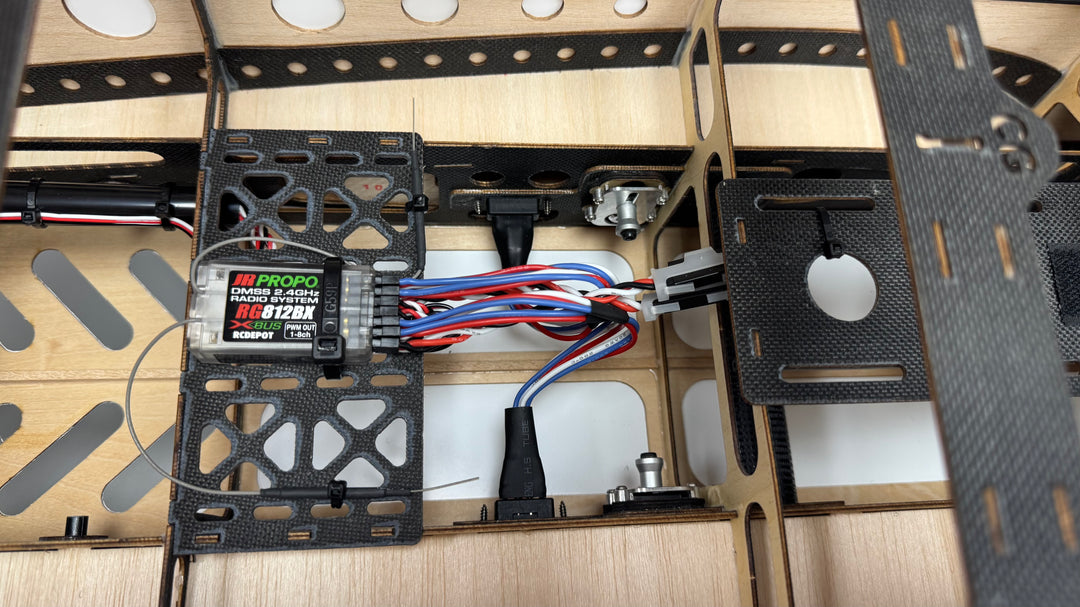

Get your Chipmunk in either ARF form, ready for your gear, or RXR configuration with electronics installed and needing only your receiver and Lipo to fly. With the RXR, you can be in the air in about an hour. Supply at least an 8ch Rx to handle all the functions.
We never get in a rush when we’re developing our aircraft, we take as long as we need to get them right. We took a long time to get the Chipmunk done, and it’s spectacular. For a do-it-all airplane that looks great, does any maneuver you ask and then slows down for perfect lazy circuits, this is the one. Make friends with your own Super Chipmunk from Legacy Aviation.
Got RxR?
Want all of this performance in just a few hours, box-to-flight? Check out the RxR version of the 80" Super Chipmunk with all the recommended components already installed. Experience an Extreme Flight RxR - the best aircraft with the best components, receiver-ready out of the box!
Features:
- Latest Generation CNC locks for quickly assembly wings at the field
- Interlocking Elevator/Stab assembly
- Removable vertical stab and rudder
- Expertly applied genuine Ultracote covering material
- Pin hinges pre-glued on all surfaces
- Ailerons and elevators hinge gaps sealed
- Carbon Fiber landing gear and tailwheel assemblies
- Matched 76mm Cyclone spinner INCLUDED
- Flexible foam transport cradle INCLUDED
- Specialized bubble style wing bag with pocket for wing tube INCLUDED
- Allows transport with landing gear still attached to the wings
** The Chipmunk box is HUGE and unfortunately the first shipment triggers an "oversize box charge" with FedEx and UPS. The next batch will be under this size and should populate at a lower shipping cost. To offset this we have activated a shipping discount for this first shipment. No code necessary, everything is in effect. This will be corrected and updated on the next delivery. **
