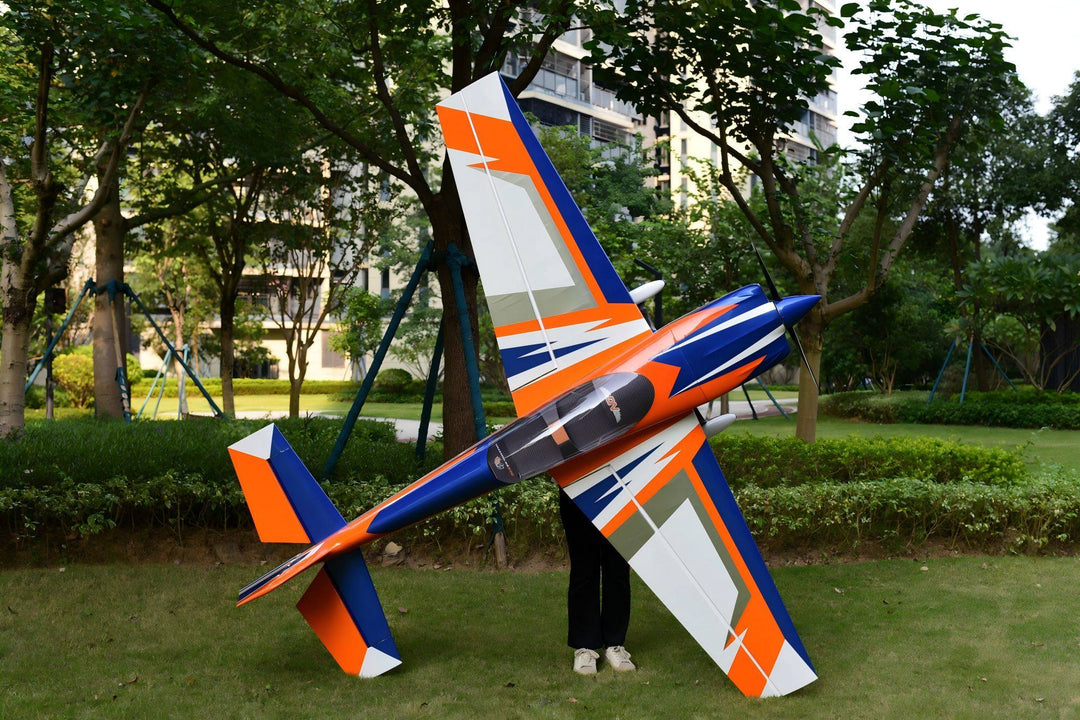

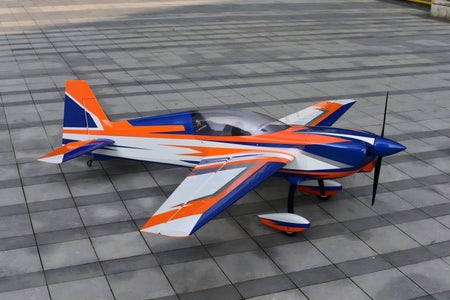

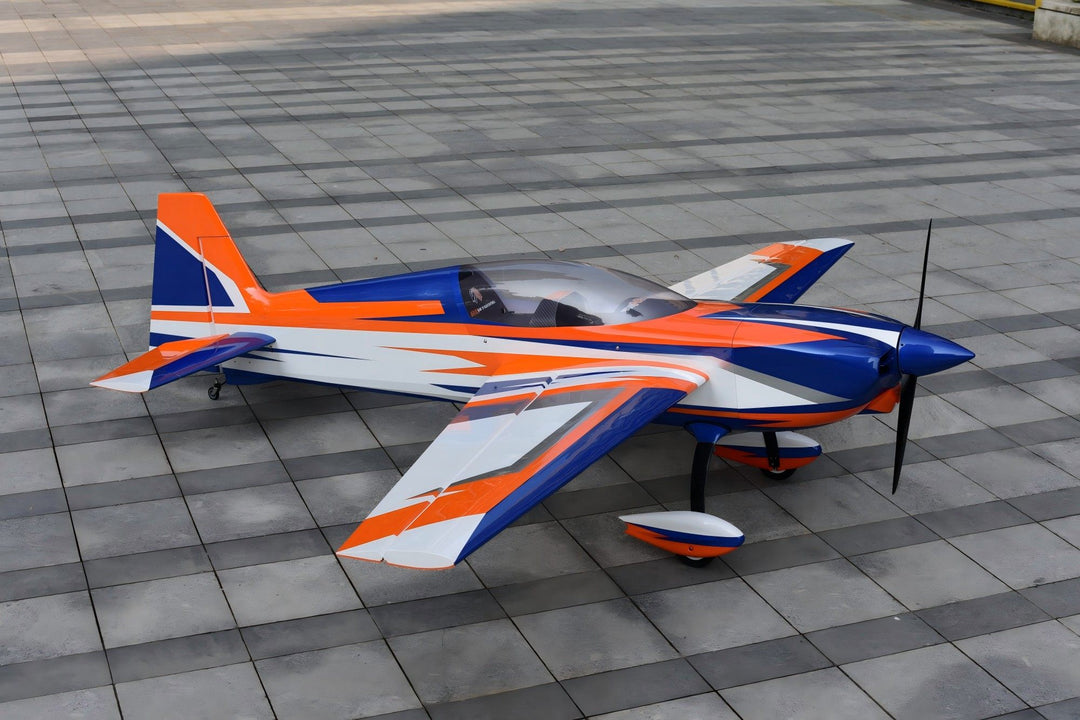

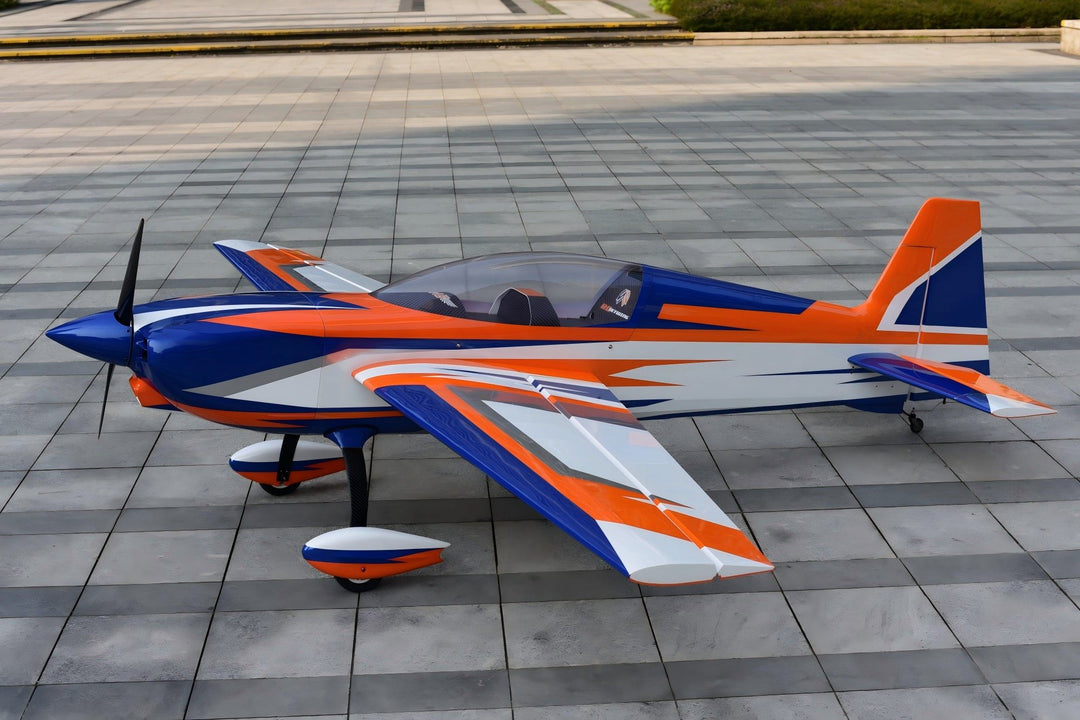

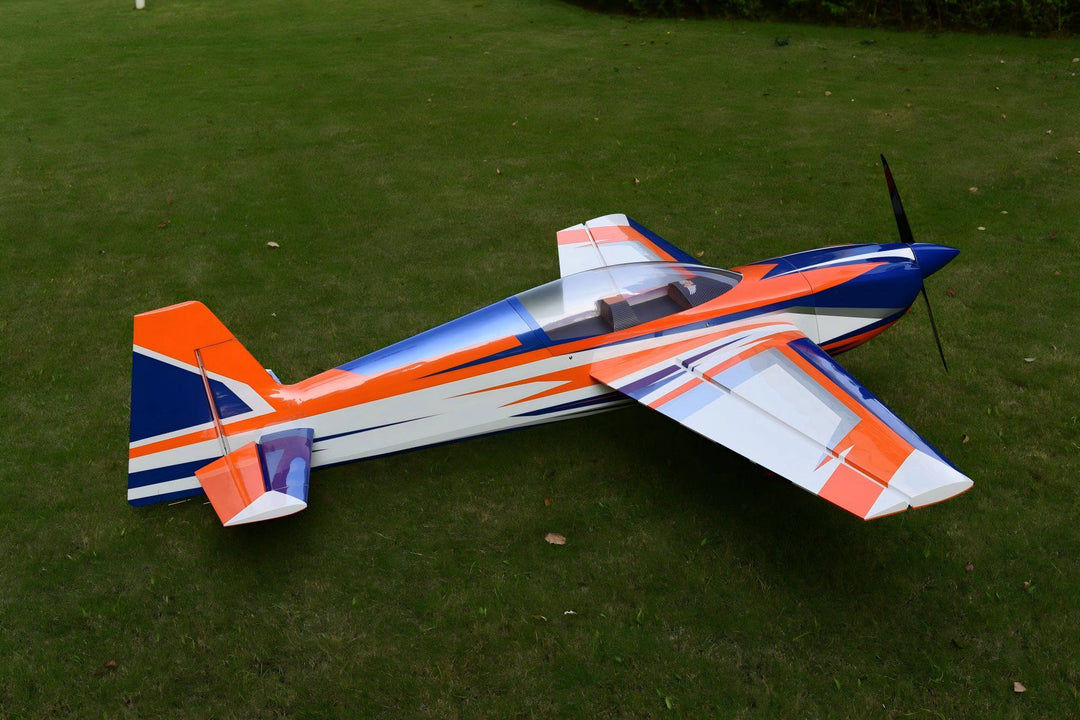

Skywing - 104" Extra NG - White/Orange/Blue (C)

Advanced construction for today's demanding pilots

PATENTED quick assembly canopy, wings and elevator systems EXCLUSIVE to Skywing

Fast assembly time with pre-hinged and pre-sealed ailerons and elevators

Factory assembled detailed canopy interior

Removable rudder with single pin assembly

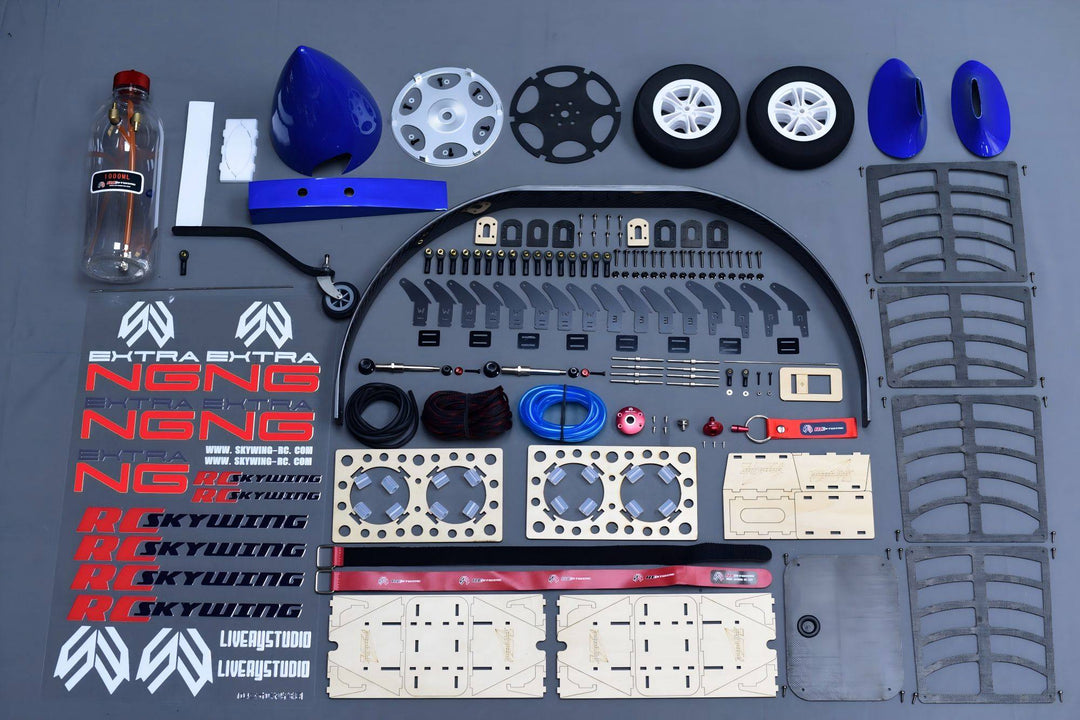

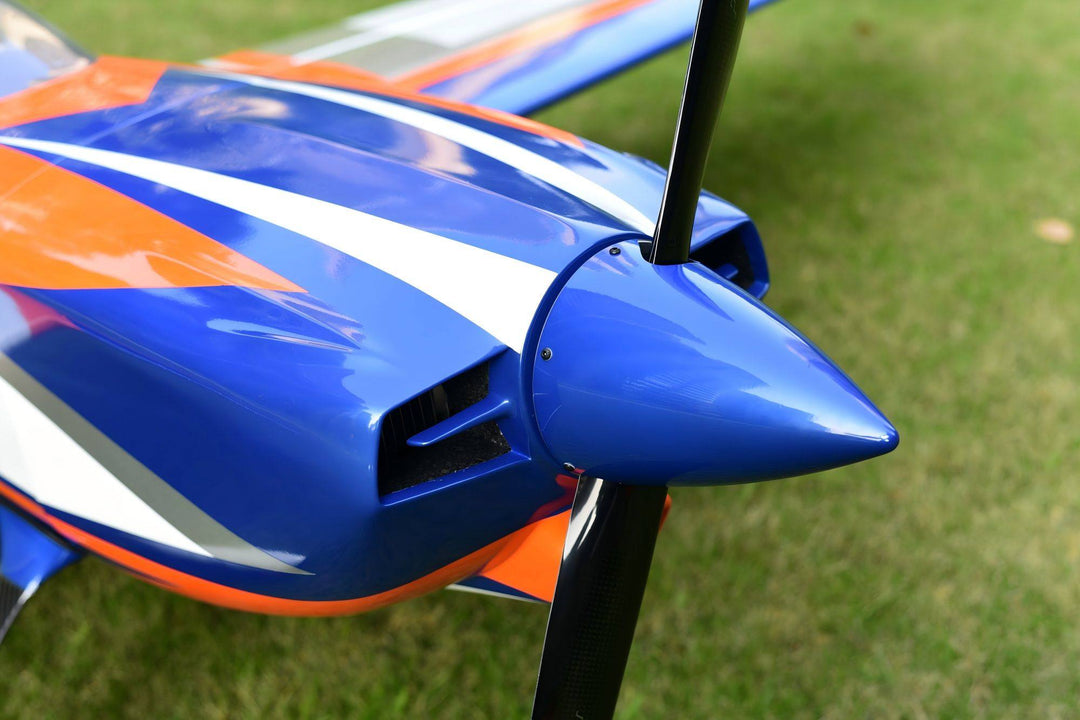

Incredible value NOW WITH MATCHING SPINNER, fuel tank, fuel line, fuel and vent dot, wing and stab bags, as well as preinstalled high-quality extensions.

Wingspan: 104 in.

Length: 102.6 in.

Wing Area: 1920 sq. in.

Weight: 27.5 to 28.5 lbs.

Requires:

(1) 100-120cc Gas Engine

(1) Carbon Propeller (27x11, 28x10, 29x9)

(1) Digital High Speed Throttle Servo

(7) Digital High Torque Metal Gear Servos

(4) 1.5" Arms - tapped for 3mm hardware (ailerons x 4)

(3) 2" Arms - tapped for 3mm hardware (elevator x 2, rudder x 1)

(3) 24" Extensions - outer aileron servos, throttle servo

(2) Dual Servo Harnesses - easy assembly at the field

Scheme C Covering
White-10
Orange-SW02
Pearl blue-SW05
Metal gray-SW04

Scheme D Covering
White -10
Metal gray -SW04
Yellow -30
