Skywing - L-39 2.2M - Camo
SKU: SWL392.2Camo
-
WINGSPAN 68.5" - 1.8M -
WEIGHT 26.24 lbs. -
POWER 120-140N Turbine
Skywing - L-39 2.2M - Camo

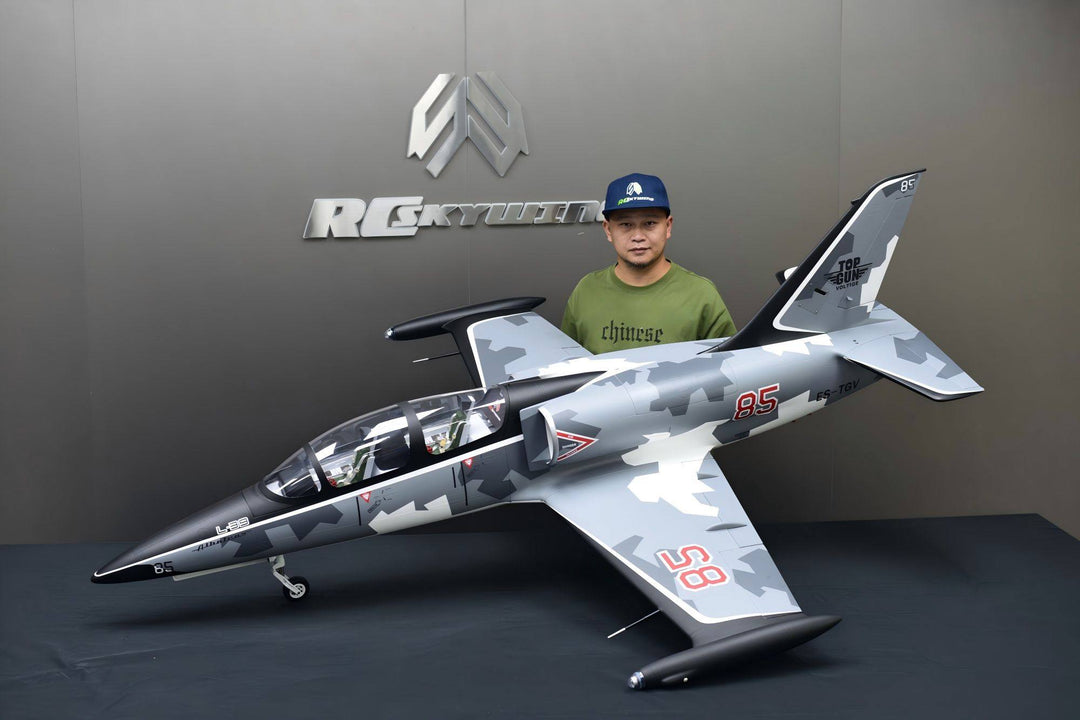

The Skywing L-39 Albatros 2.2M is a high-performance scale model jet designed for both aesthetic appeal and advanced functionality. With a wingspan of 2.2 meters, this model replicates the classic design of the original L-39 Albatros, offering enthusiasts a blend of scale detail and flight performance.
KEY FEATURES:
Advanced Construction: Utilizing modern materials and engineering, the Skywing L-39 Albatros ensures durability while maintaining a lightweight structure, enhancing flight dynamics.
Exclusive Skywing Technology: The new L-39 includes Skywing design elements, which contribute to improved aerodynamics and stability during flight. Patented quick assembly latches (along with classic spring latches) make tool-free field assembly a breeze.
Comprehensive Accessory Package: The Skywing L-39 Albatross comes equipped with a range of value-added accessories, including: detailed landing gear systems, pre-installed lights, high-quality servo extensions, Skywing patented quick connect plugs, assembly/transport stand, high quality wing/fuse/stab bags, high quality Air Trap, fuel and smoke tank and fittings, a complete hardware set, and more facilitating a smoother assembly process and optimal in-flight performance.
This model is suitable for experienced hobbyists seeking a jet that combines scale realism with advanced flight capabilities. Whether for display or dynamic aerobatic maneuvers, the Skywing L-39 Albatros 2.2M offers a rewarding experience for RC jet enthusiasts.
INCLUDES:
1. Deluxe protective bags for the Fuselage, Wings, and Elevators
2. Complete high quality servo extensions with locking features
3. Skywing patented wing connectors
3. Latest generation JP electric retractable landing gear with brakes
4. High quality double walled thrust pipe
5. Custom fuel tank(3500ml), smoke tank(1000ml), high quality UAT (200ml)
6. Quick fuel fittings and sealable vent dots with flags (2 pieces each)
7. Field assembly stand (for landing gear retraction)
8. Preinstalled power connectors (3x yellow XT60E, 1x black XT60E)
9. High quality battery straps (2 pieces)
10. High quality linkages, ball links, and hardware
11. Mounting templates for recommended turbines
12. Wood throw gauges for each surface
SPECS:
Wingspan: 68.5 in./1738mm
Length: 85.9 in./2182mm
Pre-flight weight: 26.24lbs/11.9kg
(Batteries installed and no fuel. (SW140B/3S2200=1PCS, 2S2200=3PCS/no fuel)
REQUIRES:
Servos:
2x Ailerons, Mini servos (size: 35x15mm-15kg), 2x 1" M3 Servo Arms
2x Flaps, Standard servos (size: 40x20mm-38kg), 2x 1.5" M3 Servo Arms
2x Elevators, Mini servos (size: 35x15mm-15kg), 2x 1" M3 Servo Arms
1x Rudder, Mini servo (size: 35x15mm-15kg), 1x 1" M3 Servo Arm
1x Front Wheel Steering, Mini servo (size: 35x15mm-15kg), 1x 1" M3 Servo Arm
3x Gear Doors, Mini servos (size: 35x15mm-15kg), 3x 1.25" M2 Servo Arms
Radio/Reciever with 14 channels when using: gyro, smoke, light control
120-140N Turbine
BOX DIMENSIONS/WEIGHT:
Fuselage: 79x42x134cm/17.9kg
Wings: 60x24x96cm/7.0kg
Setting up the Skywing L-39 requires precise control surface geometry and an accurate Center of Gravity (CG) to ensure a scale look with nimble, sport-jet performance. Because it shares design DNA with Extreme Flight models, you can dial in the following recommended baseline throws and radio setup:
Control Surface Throws & Expos
The L-39 has a large flight envelope and responds well to both precision and 3D-style maneuvers. Measure these throws at the root of the control surfaces:
Ailerons
- High Rate: +-25mm with 35% Expo
- Low Rate: +-18mm with 25% Expo
Elevator
- High Rate: +-20mm with 35% Expo
- Low Rate: +-14mm with 25% Expo
Rudder
- High Rate: +-35mm with 30% Expo
- Low Rate: +-25mm with 25% Expo
Flaps & Mixes
- Takeoff (Half): 15mm - 20mm down
- Landing (Full): 45mm - 50mm down
- Flap-to-Elevator Mix: Add 2 - 3mm of Down-Elevator with full flaps to prevent the nose from pitching up sharply.
- Crow (Optional): Many pilots mix a small amount of "crow" (ailerons up 3mm-5mm on full flap deployment) to improve slow-speed handling and make high-alpha landings incredibly easy.
Center of Gravity (CG)
Ensure your battery placement or fuel load brings the balance point exactly to the manufacturer's recommendation.
- CG Measurement: Measure 165mm approx. 6.5 behind the leading edge at the wing root.
- Tip: Fly the maiden flight with low rates and a small amount of Expo.
